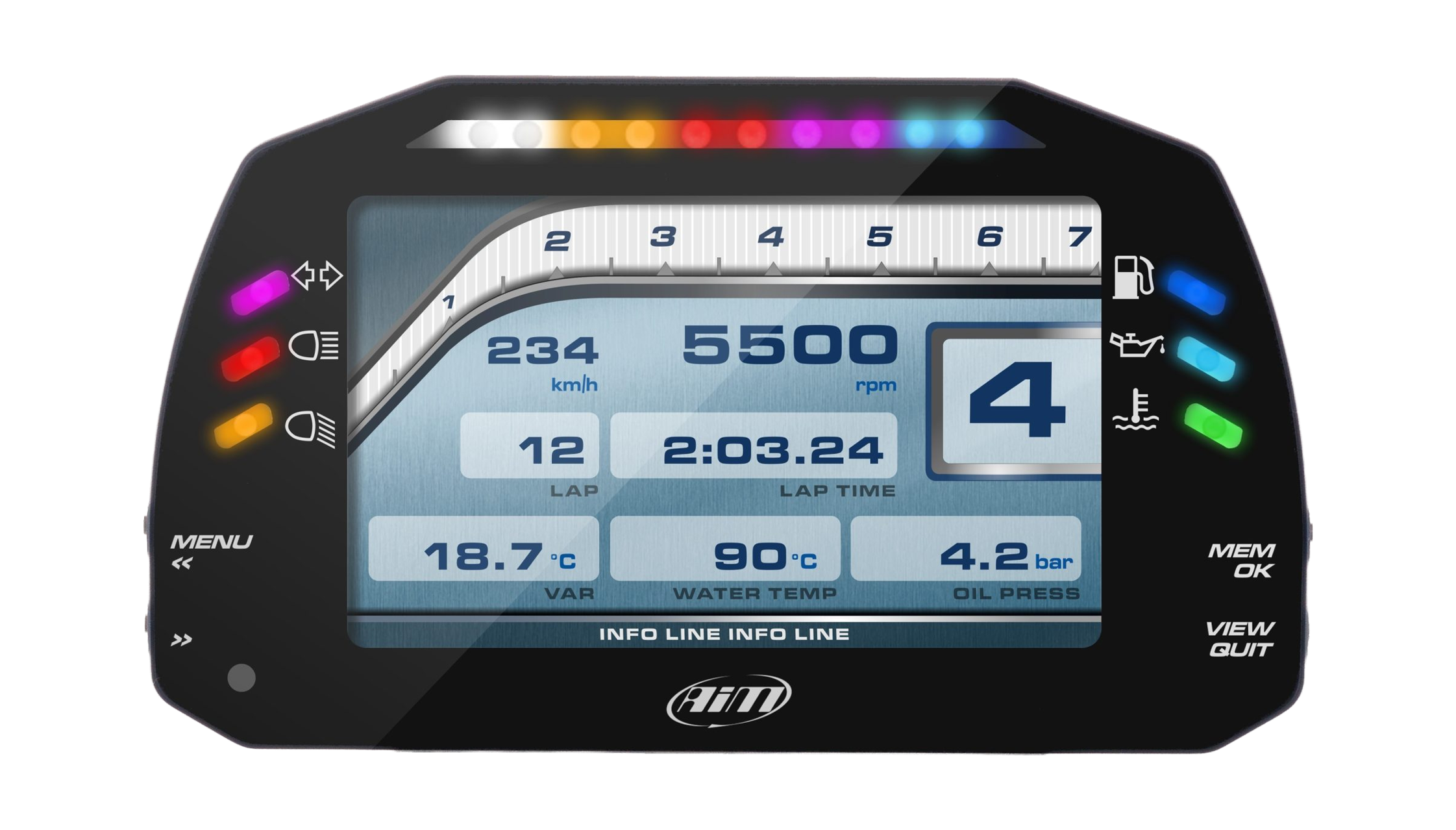

AiM MXS 1.3 Strada

MXS Strada TFT display for road use

The MXS Strada It's the dash of AiM Designed to display data from the ECU, the internal accelerometer and gyroscope, as well as predefined analog/digital channels and math channels. Performance and data output can be increased by adding up to eight expansion modules.

Specifications

• 5″ Display
• Configurable digital output
• Resolution 800×480 pixels
• Contrast ratio 600:1
• Brightness 700cd/m2 – 1,100 Lumen
• Light Sensor
• 6 Configurable LED Alarms
• Shift Light
• 2 CAN
• 8 analog inputs
• Aluminum Body
• IP65

Configurable pages

You can define as many custom pages as you like, choosing from a wide library of page styles, defining what data to display, its measurement purpose, and measurement units. Switching between pages can be managed by pressing one or two buttons.

High contrast TFT display

A high-contrast TFT screen identifies the MXS Strada At first glance, an ambient light sensor keeps the backlight at optimal brightness levels.

Flexible alarms

The MXS Strada It features configurable RGB alarm LEDs: Choose the conditions and choose the colors. Select a solid or flashing alarm LED and the flashing frequency, opt to have a text message, and set alarm priorities.

You can also associate an LED alarm, a message, and a digital output with each event.

Race Studio3 Configuration

MXS Strada It is configured through the Race Studio3You can create, modify, delete import and export configurations with all ECU channels, Math channels, screen pages, digital output, alarms, shift lights and all the expansions you need.
